Description

Brand Name: Aiyima

AIYIMA Model: B01

Hign-concerned Chemical: None

Maximum Power Per Channel: 100W

Package: Yes

Channels: 3 (2.1)

Certification: CE

Certification: FCC

Certification: RoHS

Model Number: B01

Bluetooth version: 5.0

output power: 50Wx2+100W

Feature: Subwoofer amplifier

Feature 1: Bluetooth amplifier

Features:

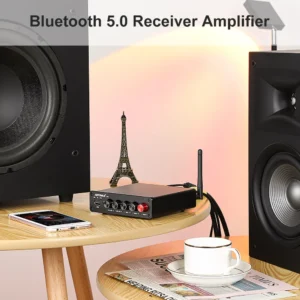

The B01 Stereo Amplifier adopt high performance TPA3116D2 amp chip, dual channel max output power 50W x2@4ohm +100W to get clear audio sound, no pop, no audible noise, dead silent when nothing is playing through it.

Speakers full frequency output, By using custom treble bass knob and adjustable 40-300Hz cutoff frequency for subwoofer, you’ll be able to get the best sound!

Supports wireless playback from BT devices, BT 5.0 wireless music streaming technology with external antenna make a transmission distance of more than 15m; Remote control switches songs and adjusts volume within 5m.

Full metallic shell to ensure high quality and durable, advanced circuitry design, built-in speakers protection circuit to ensure Hi-Fi and clean sound; With unrivaled sound for the customers who pursue HiFi sound.

Basic Parameters:

Model: AIYIMA B01

Max output power: 50W*2+100W (4Ω load)

Working voltage: DC 12-24V(Please at least use DC 24V 8A or 10A if you want to get maxmium output power)

SNR: ≥98dB THD: 0.05%(1kHz 1W)

Input sensitivity: 0.775V

Frequency Response: 20Hz-20KHz(±3dB)

Low frequency adjustment range: 40-300Hz

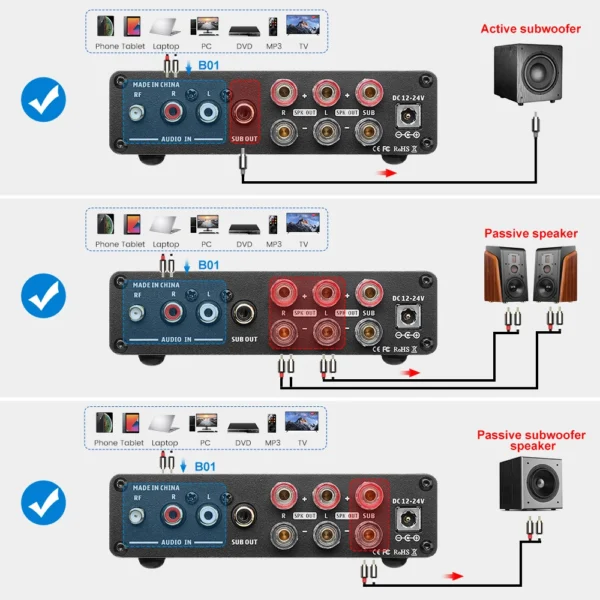

Audio input: Bluetooth/Stereo RCA/U-disk(choose one input)

Audio output: banana speaker jacks

U-disk support format: MP3, WMA, APE, FLAC, WAV…

BT version: 5.0

Dimensions(W*D*H): 130*128*30mm

Package included :

1*B01 Amplifier

1*Remote control

1*BT Antennta

1*Manual

1*Power Supply (it’s optional):
